Why NCCL Tests Matter
Many beginners, including my past self, tend to think of NCCL Tests as just a benchmarking tool. In practice, that framing is too narrow. A better way to describe it is as a diagnostic tool for the underlying communication state of a GPU cluster, especially when InfiniBand, RoCE, PCIe, NVLink, or TCP-based transport paths are involved.
It often gets mistaken for a benchmark because it produces performance numbers. But what it is actually testing depends on the communication path being exercised: NVLink, PCIe, Socket TCP, or RDMA over RoCE or InfiniBand.
Why We Need NCCL Tests
In our current environment, distributed training across multiple machines frequently runs into NCCL Timeout errors. The hardest part of debugging this kind of failure is that a real training job mixes together two very different things: model computation and low-level communication.
That makes root-cause analysis noisy and slow. What we really want is a way to strip away the model logic and reproduce only the communication behavior underneath. That is exactly where NCCL Tests becomes useful. It acts like a communication simulator, letting us validate the health of the transport path without depending on the full training stack.
How NCCL Communication Is Built Under the Hood

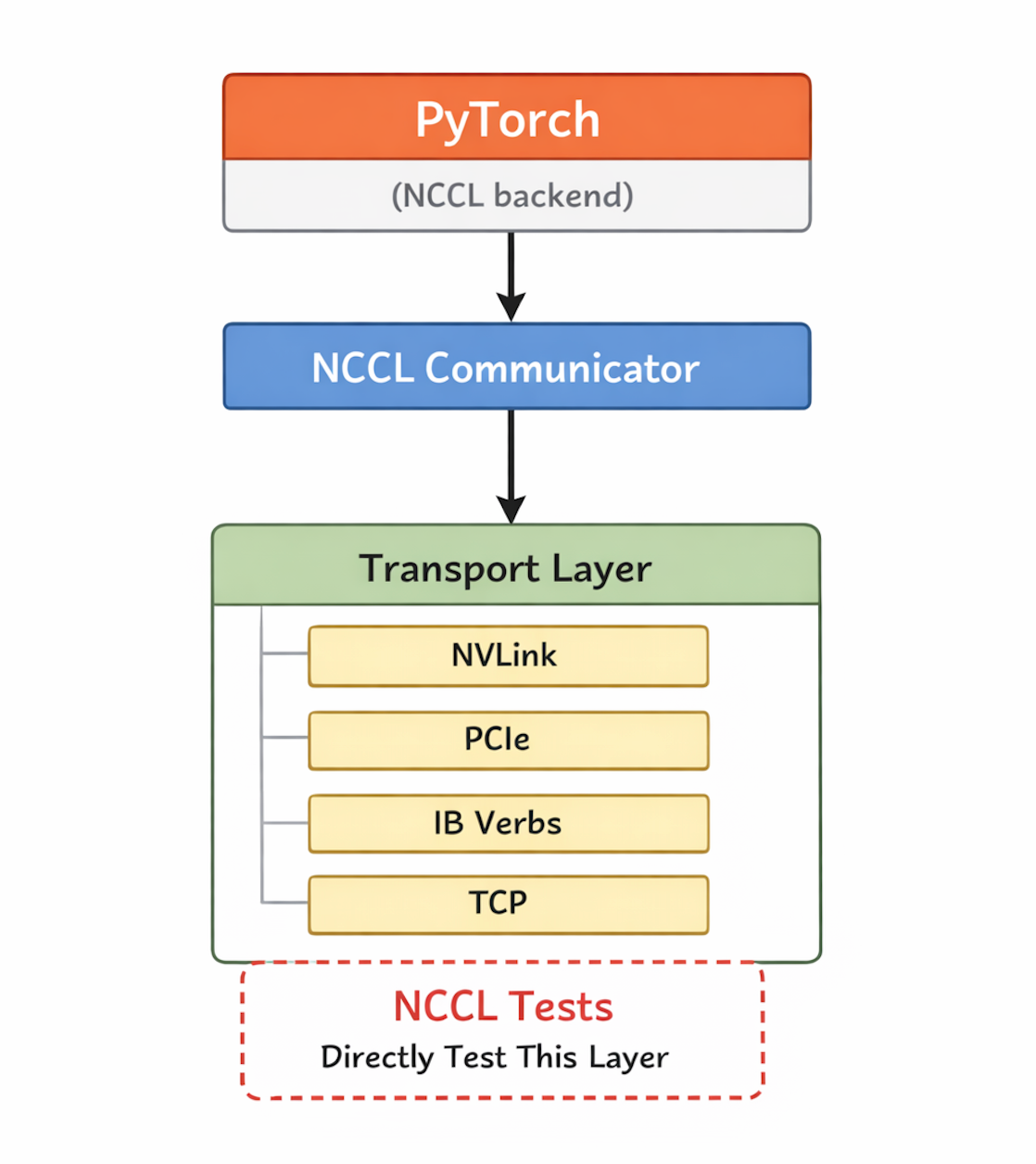

Before talking about NCCL Tests, it helps to keep the PyTorch distributed communication stack in mind:
From this diagram:
- PyTorch training logic sits at the top.
- NCCL handles collective communication in the middle.
- The actual transport layer lives underneath, such as NVLink, PCIe, RDMA, or TCP.
Seen from that perspective, NCCL Tests is essentially a way to bypass most of the training framework and probe the communication layer more directly.
You can think about the distinction like this:
- PyTorch Training = Compute + Communication
- NCCL Tests = Communication
That is also how many GPU infrastructure engineers look at it. NCCL Tests does not care whether your model is converging or whether your forward pass is correct. It cares about whether GPUs and nodes can actually exchange data reliably once communication begins.
What NCCL Tests Simulates
NCCL Tests exercises the full lifecycle of communication, from initial coordination to actual data transfer. Broadly speaking, that process can be divided into three stages.
1. Rendezvous / Rank Discovery
Before communication starts, all participating nodes need to discover one another. This rendezvous phase establishes who each rank is, how many participants are involved, and which addresses will be used for communication.
This step is often coordinated through something like MPI. Its purpose is not to carry long-lived traffic, but to let every participant agree on the initial communication world.
2. Link Creation
Once the participants know about one another, NCCL builds the communication links. At this stage, the question is not only whether the network is reachable, but also how the hardware topology looks.
NCCL inspects the topology across GPUs, PCIe, NVLink, and NICs, then builds an efficient communication structure such as a ring or tree based on that topology. In other words, it is not merely connecting two machines. It is trying to construct the best communication path the hardware layout allows.
3. Peer-to-Peer Communication
After the links are established, communication no longer depends on the initial rendezvous coordinator. At that point, the participants have formed peer-to-peer connections and can exchange data directly.
This is usually the phase we care about most during debugging, because many real training failures, including timeouts, hangs, and throughput anomalies, show up only after direct communication begins.
The Main Problems NCCL Tests Helps Expose
When you run NCCL Tests, there are several classes of failures it can reveal very quickly.
Is RDMA Actually Working
Some clusters look as if they are configured for InfiniBand, but in reality they fall back to NCCL over TCP. In complex environments, this is more common than people expect. NCCL Tests is often one of the fastest ways to confirm whether RDMA is truly active.
Is Bandwidth Lower Than It Should Be
Even if traffic is going over InfiniBand or RoCE, that still does not guarantee good performance. If the observed throughput is far below the theoretical bandwidth, the problem may lie in the network path, topology, switch configuration, or NIC state.
Are There Node-to-Node Connectivity Failures
Sometimes the issue is not that the whole cluster is broken, but that a specific pair of nodes cannot communicate reliably. These partial failures are especially hard to catch in large-scale training because they may only appear under certain rank combinations. NCCL Tests makes those localized failures easier to isolate.
Is Network Jitter or Latency Causing Training Instability
A short successful test run does not mean the network is healthy enough for sustained distributed training. Longer stress tests can reveal packet loss, jitter, latency spikes, or timeout patterns under load, which helps narrow the problem down to hardware, routing, or network-path instability.
Conclusion
NCCL Tests is much more than a GPU communication benchmark. A more useful mental model is to treat it as a stethoscope for the communication path inside a GPU cluster.
By simulating the collective communication patterns that happen in real training, it lets us ignore most of the surrounding framework complexity and focus directly on the path between GPUs, PCIe, NVLink, and RDMA-enabled networking. That makes it far easier to identify issues such as NCCL timeouts, abnormal bandwidth, broken links, or unstable network behavior.
If you are debugging distributed training, treating NCCL Tests as a low-level communication diagnostic tool is usually much more productive than thinking of it as a benchmarking utility.
